AUDIO SYSTEM Multi-Channel Amplifier

$258.00

Audio System German Sound

Making speakers and amplifiers since 1988. With vast car audio engineering background, it has established a wide range of products that cater for all walk of life and capable of offering every individual need with different taste of music.

Audio System GmbH has committed itself to continue to create the highest level of sound quality in the car audio industry.

Options

  • Audio System CO-35.4 Multi-channel Amplifier $258.00
  • Audio System CO-100.2 Amplifier $448.00
  • Audio System CO-650.1 1-Channel Amplifier $668.00
  • Audio System M-135.2 2-Channel Amplifier $668.00
  • Audio System CO-70.4 Multi-channel Amplifier $678.00

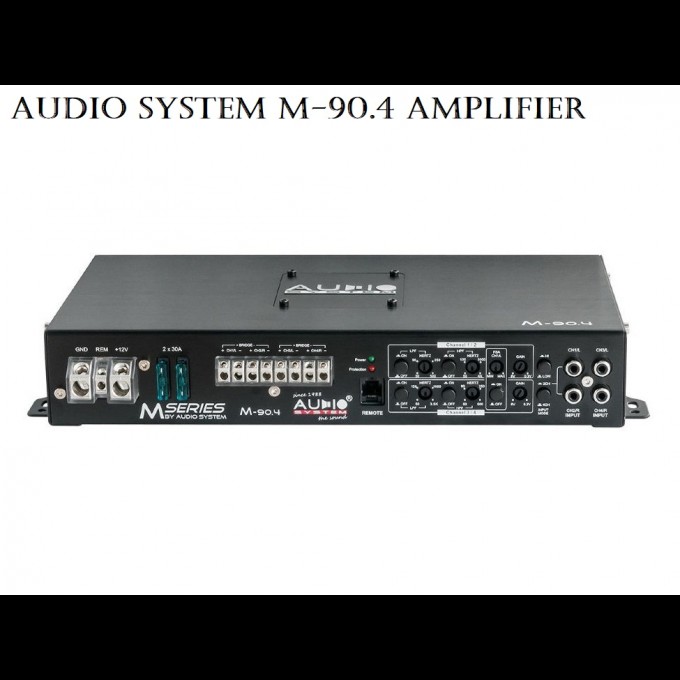

  • Audio System M-90.4 Amplifier $698.00
  • Audio System M-850.1 1-Channel Amplifier $798.00

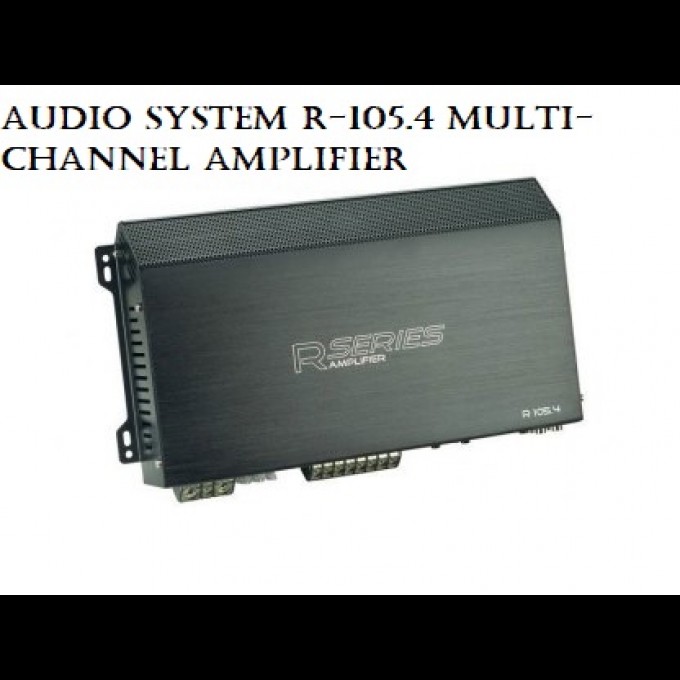

  • Audio System R-105.4 Multi-channel Amplifier $798.00
  • Audio System R-1250.1D 1-Channel Amplifier $928.00

Description

The CO-35.4 offers RCA and AUX-Inputs, which are connected through cinch cables with the preamplifier-outputs of the head unit (head unit, MP3-Player, iPhone, iPad). If the head unit (OEM-RADIO) has no RCA-Output, than it is possible to connect the speaker output to direct RCA-Input and switch has to be turned to “HI”. If signal is presented at RCA, AUX or High Input, the amplifier automatically turns on and the power LED lights. With the aid of the gain-controller and variable crossover you are able to adjust the amplifier on to your prefered taste of hearing, the circumstances of the vehicle and to the speakers.

Features

  • 4-channel IC amplifier with AUX IN and RCA input from 0.1 to 13 volts input sensitivity
  • Switchable LP filter 80 Hz or 1500Hz, continuously variable HP filter 80-4000 Hz, subsonic level input with automatic switch
  • 4x 35 watts RMS into 4 ohms or
  • 4x 50 watts RMS at 2 ohms
  • 132x45x80 mm
  • Stable into 2 Ohm Stereo per channel
  • Extreme high input sensitivity from 0,1 to 13 V
  • Multi-Way Protection Circuitry: overheat, overload and short circuitry protection
  • Full-Active-Mode possible
  • High-Level-Input (normally original radio) with automatically “Turn-On”
  • AUX-Input or RCA-Input

Specifications

  • Power Supply Voltage: 10 – 16 V
  • Rated Power Output at 14,4 V
    • RMS power @ 4 ohm stereo : 4x 35 W
    • RMS power @ 2 ohm stereo : 4x 50 W
  • Signal to Noise Ratio : > 88 dB
  • Low Pass Filter (LPF) Channel 1+2 : 80 oder 1500 Hz
  • High Pass Filter (HPF) Channel 3+4 : 80 bis 4000 Hz
  • Frequency Response : 35 Hz ~ 20 KHz (+/-1 dB)
  • THD@RMS Watts at 4 Ohm and 1/2 rated power: < 0,03%
  • Channel Separation : 65 dB
  • Fuse Rating: 1x 15A
  • Input Sensitivity : 100 mV ~ 13 V (+/- 5%)
  • Dimensions : 132(L) x 45(H) x 80(W) mm
